Optoplex Corporation社
 |
■メーカーの紹介 |
 |
|
|||||||||||||||
| ■製品概要／Product Overview | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

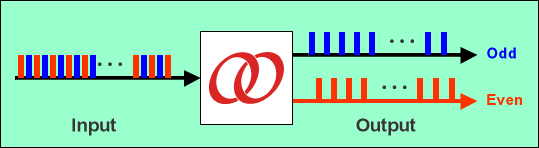

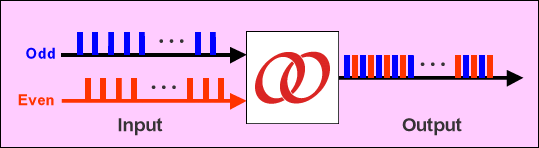

| An innovative technique for expanding the number of channels per fiber involves an optical device, called an optical interleaver. For example, in most DWDM equipment, the standard channel spacing is 100 GHz. But spacing the signal-carrying frequencies every 50 or even 25 GHz can double or even quadruple the number of channels per fiber. This job is accomplished by an optical interleaver. Such a device takes two multiplexed signals with 100-GHz spacing and interleaves them, creating a DWDM signal with channels spaced 50 GHz apart. The process can be repeated, creating even denser composite signals with 25-GHz or 12.5-GHz spacing. The signals at the receiving end are recovered with the same devices used as splitters or optical de-interleavers. Thus, devices and/or networks can be upgraded without requiring that all devices be upgraded, or network bandwidth can be increased. Optoplex's Optical Interleaver products are based on patented Step-Phase Interferometer design. Used as a Demux (or Mux) device, an optical interleaver separates (or combines) the odd and even channel signals (see the schematic diagram below). Each optical interleaver device is optimized to cover either C- or L-band wavelengths, with the option of covering C+L band. The current standard optical interleaver product family supports 100-200, 50-100, 25-50, and 12.5-25 GHz channel spacing, covering up to 90, 180, 360, and 720 channels, respectively, as well as other custom spacings in that range, such as 33.33-66.66 GHz. Dual-stage optical interleavers are also available. For asymmetric optical interleaver, please visit the other web page. Optoplex's Optical Interleavers have wide and flat passband, low (and customizable) dispersion, low and uniform insertion loss, low PDL, high channel isolation and very low thermal drift. Symmetric Optical Interleaver  Symmetric Optical De-Interleaver  Standard Specifications of Optical Interleaver

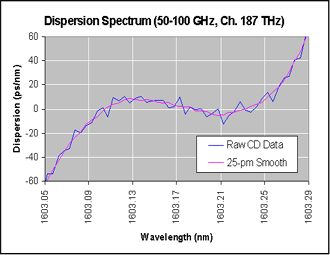

1. Certain parameter specs can be tightened based on customer needs. 2. Option of a single device covering both C- and L-band is available with slight tradeoffs in spectral performance. 3. Over the stated spectral and operating temperature ranges and all polarization states. 4. Outer casing dimension. Other sizes or compact devices are also available depending on the specification. 5. Wider passband also available. Typical Performance of Optical Interleaver
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PDFファイル： 84 kb |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ■特徴／Key Features |
| - Wide and Flat Passband - Minimal PDL - High Channel Isolation - Minimal Thermal Drift - Low and Customizable Dispersion - Low Insertion Loss & IL Uniformity - Dual C- and L-Band Coverage - Super-Band Version Available - Customized channel spacing, such as 33.33-66.66 GHz - Asymmetric/Uneven Optical Interleaver Available - Telcordia GR-1221/63 Qualified |
| ■アプリケーション／Application |
| - Extend Existing Network Capacity - Bridge Existing & New DWDM Platforms - System Upgrade - Bi-Directional Networks - Total Signal Power Detection for Raman Amplifier - Multi-Wavelength Transponder - Flat-top Comb Filter |
