Optoplex Corporation社


光貿易/Optoplex

メーカーの紹介
Optoplex社は、ダイナミック波長マネージメントとシグナル・コンディショニング用の光コンポーネントおよびモジュールのサプライヤです。光通信ネットワークの最先端のDPSKやDQSK関連の製品を提供しています。



光貿易: Optoplex DPSK Demodulator 復調器 Delay Line Interferometer
メーカー Optoplex【オプトプレックス】

製品名 :DPSK Demodulator, DPSK復調器, Delay Line Interferometer

カテゴリー DPSK / DQPSK関連

光貿易/MICRAM Microelectronic



製品概要/Product Overview

Optical differential-phase shift keying (DPSK) provides a desired modulation format that offers high receiver sensitivity, high tolerance to major nonlinear effects in high-speed transmissions, and high tolerance to coherent crosstalk. In DPSK, data information is carried by the optical phase difference between adjacent bits. For direct detection of DPSK signal (by conventional intensity detectors), a DPSK demodulator is needed to convert the phase-coded signal into an intensity-coded signal.

Optoplex's Optical DPSK Demodulator, also known as Delay Line Interferometer (DLI), converts phase modulation to amplitude modulation over the entire C+L band in support of data transmission rates of 2.5, 10 or 40 Gb/s. The DPSK Demodulator is designed for phase modulated optical communication systems utilized in commercial, defense and space exploration markets. The DPSK device plays a key role in improving signal quality and performance to meet the expanding demand for higher data rates and more complex transmission formats within current and next generation systems without major capital expenditure. Optoplex's DPSK Demodulator is based on a patented free-space optical design, which is compact, athermal and polarization-independent. The measured frequency drift over temperature is only ~0.02 GHz/°C for our standard passive device.

Further, this DPSK Demodulator exhibits a total polarization-dependent phase shift of less than 2 degrees over the entire operating temperature range with a high extinction ratio. Optoplex's DPSK Demodulators can be configured to be fully tunable, semi-tunable or purely passive. Dual-Rate DPSK Demodulator is also available.



Standard Specifications of DPSK Demodulator
Paramete
Unit
Specifications
Tunable
Semi-Tunable
Passive
Wavelength Range (C-Band)
nm
1527 to 1567
Wavelength Range (L-Band)
nm
1567 to 1607
Free Spectral Range (FSR) 1
GHz
10.7, 43, 50, 67
10.0, 12.5, 40, 50, 66.67
FSR Error
M%
< 1
< 0.015
Insertion Loss 2
(including 2 connectors)
dB
1.7 Typical; 2.2 Maximum
Extinction Ratio 2
dB
> 18
> 18
> 20
PMD2
ps
< 0.1
Return Loss
dB
> 40
PDL 2
dB
< 0.2
PDFS 2
deg
< 3
TDFS 3
GHz
NA
< 1.5
Optical Path Delay2
(between the 2 receiving ports)
ps
< 1.0
Tuning Range
-
1.5 x FSR
± 3 GHz
NA
Tuning Time Constant 4
sec
~ 1.0
~ 6.0
NA
Power Consumption
W
0.5 Typical, 1.0 Maximum
NA
Tuning Voltage
V
0 to 5
NA
Maximum Input Optical Power
mW
300
Operating Temperature
0 to 70
Storage Temperature
-40 to 85
Dimension (L x W x H) 5
mm
~ 39x26x11 for 10~12.5 GHz
~ 26x24x9 for >40 GHz
~ 51x30x18 for 10 or 12.5 GHz
~ 25x25x11 for 40 GHz
Connector Type
-
TBD
Fiber Pigtail Type
-
SMF-28 with 900 μm loose tube
Fiber pigtail lenrgth
m
1.0 ± 0.1
Notes:
1. Only typical values are listed. Optoplex can provide devices with FSR ranging from 2.5 to 160 GHz.
2. Over the stated spectral and operating temperature ranges and all polarization states.
3. Defined as the time required to reach half-way from the starting and ending points.
4. Excluding two collimator sleeves extending out from the two adjacent sides by 21 mm with diameter of 8 mm.
5. Excluding two collimator sleeves extending out from one shorter side by 17 mm with diameter of 6.3 mm.

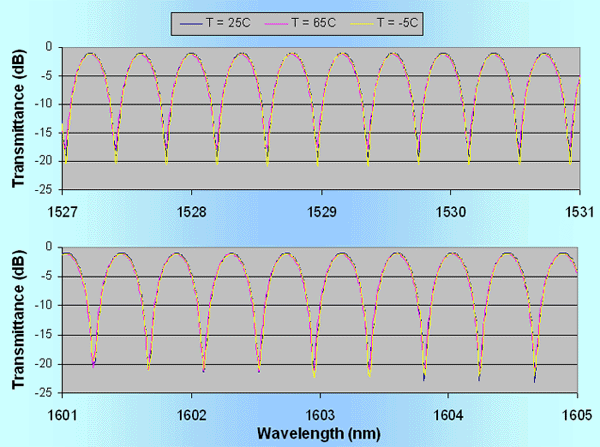

Typical Performance of DPSK Demodulator
光貿易: Optoplex DPSK Demodulator 復調器 Delay Line Interferometer

光貿易: Optoplex DPSK Demodulator 復調器 Delay Line Interferometer
PDFファイル: 335 kb

特徴/Key Features

- Athermal design
- C+L band coverage by a single device
- Low temperature-dependent frequency shift (TDFS)
- Low polarization-dependent frequency shift (PDFS)
- Wide bandwidth
- Low insertion loss & PDL
- High power handling
- Passive, semi-tunable and fully tunable operation
- Suitable for both RZ and NRZ modulation format
- Telcordia GR-1221 qualified



アプリケーション/Application

- 2.5, 10, 20 or 40 Gb/s commercial DPSK signal reception
- Customized data rate for advanced applications
- Data rate optimization
- Extend transmission distance
