Optoplex Corporation社

■メーカーの紹介
Optoplex社は、ダイナミック波長マネージメントとシグナル・コンディショニング用の光コンポーネントおよびモジュールのサプライヤです。光通信ネットワークの最先端のDPSKやDQSK関連の製品を提供しています。

光貿易： Optoplex 2-Port Tunable Optical Filter チューナブル光フィルタ

■メーカー	：Optoplex【オプトプレックス】

■製品名	：2-Port Tunable Optical Filter チューナブル光フィルタ

■カテゴリー	：WDM / CWDM / DWDM

■製品概要／Product Overview

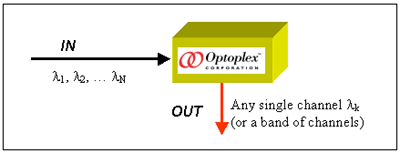

Optoplex's Tunable Optical Filter, also known as Optical Tunable Filter or Tunable Bandpass Filter, is an integrated module, consisting of micro optics and electronics. When receiving a stream of optical signals of a plurality of wavelengths from the Input-Port (IN), the 2-port tunable optical filter directs a selected channel to the Output-Port (OUT). The selected channel can be varied (tuned) within the operating wavelength (frequency) range by a remote command sent through the built-in control PCB and firmware.

Optoplex's Tunable Optical Filter is based on a patented micro-optic design and thin-film interference filter coating technology. The thin-film filter used in tunable optical filter is very similar to those already widely used in DWDM devices. The wavelength tuning is achieved by varying the incident angle of the incoming light beam on the thin-film filter. Each single device is optimized to cover either C- or L-band wavelengths. The standard tunable optical filter product family supports 100- and 50-GHz channel-spacing.

光貿易： Optoplex 2-Port Tunable Optical Filter チューナブル光フィルタ

Standard Specifications of Tunable Optical Filter 1:

Parameter	Unit	50 GHz	100 GHz
Wavelength Tuning Range		C-band: 1528 ～ 1562 L-band: 1567 ～ 1603
Wavelength Tuning Resolution	THz	～ 10 pm or Calibrated to ITU grids
Passband Width 1 @ 0.5 dB	GHz	-	>30
Passband Width1 @ 1.0 dB	GHz	>16	-
Passband Width1 @ 3.0 dB	GHz	25 (Typical)	50 (Typical)
Passband Width1 @ 20 dB	GHz	< 85	-
Passband Width1 @ 25 dB	GHz	-	<150
Peak Insertion Loss1 (without connector)	dB	<4.0	<2.7
Polarization Dependent Loss 1	dB	<0.3 within CW±5GHz	<0.4 within CW±10GHz
Polarization Mode Dispersion	ps	0.5	0.3
Chromatic Dispersion 1	ps/nm	<± 50 within CW ±5GHz	<± 25 within CW ±12GHz
Wavelength Setting Error 2	GHz	<±4
Wavelength Repeatability2	GHz	±1
Wavelength Temperature Dependence	pm/°C	<± 1 (Typical)
Return Loss	dB	> 40
Maximum Input Optical Power	mW	300
Tuning Speed (channel to channel, depending on originating and destination channels)	sec	<10	5 ～ 10
Tuning Power Consumption	mW	<1800 (Peak)	<300 (Idle)
Tuning Voltage	V	5 (DC)
Electronic Interface	mW	RS232
Operating Temperature	℃	0 to 65
Storage Temperature	℃	-40 to 85
Dimension (L x W x H) 3	mm	84 x 61 x 16

Notes:
1. Over the stated spectral and operating temperature ranges and all polarization states.
2. Related to mechanical accuracy at a given temperature.
3. Including collimator sleeve and control PCB.

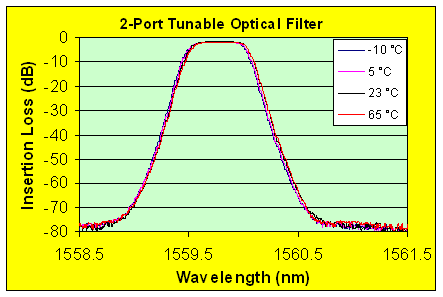

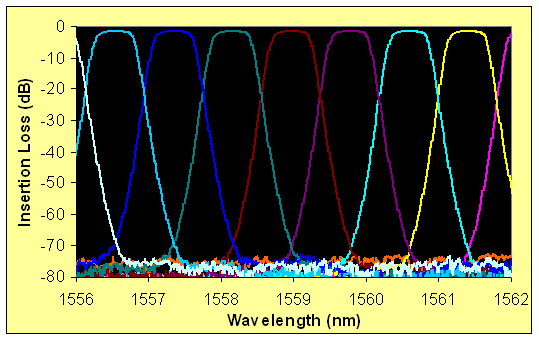

Typical Performance of Tunable Optical Filter (100 GHz):
光貿易： Optoplex 2-Port Tunable Optical Filter チューナブル光フィルタ

PDFファイル： 335 kb

■特徴／Key Features

- Athermal Design
- Wide Tuning Range, Cover C-Band or L-Band
- Flat and Wide Passband for up to 40 Gb/s Signals
- Low & Uniform Insertion Loss
- High Channel Isolation
- Latching and Low Power Consumption
- Options of Electrical Connector from Side or Bottom
- Support Both TTL and LVTTL
- 3-Port ROADM Device Available
- Telcordia GR-468 Qualified

■アプリケーション／Application

- Dynamic wavelength selection in DWDM systems
- Signal demultiplexing for DWDMs
- Optical performance monitoring
- Tunable optical noise filtering
- Noise suppression for optical amplifiers
